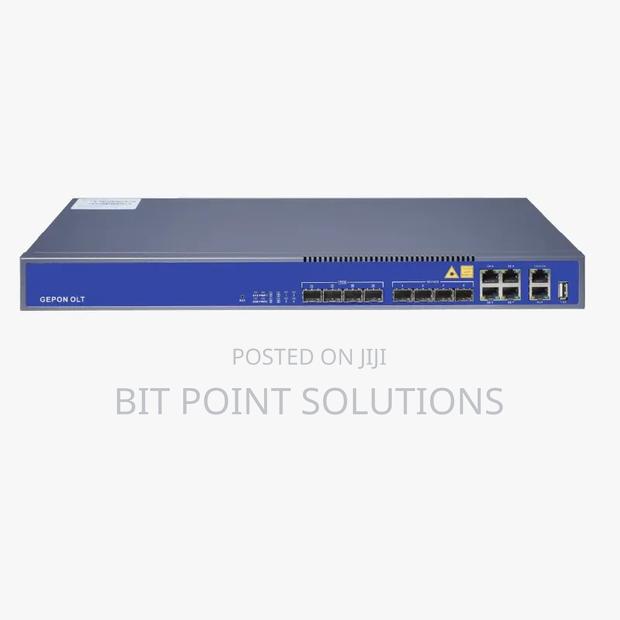

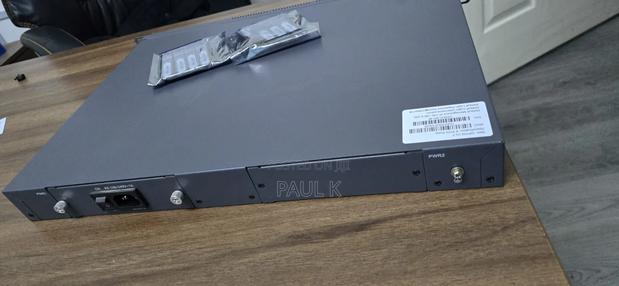

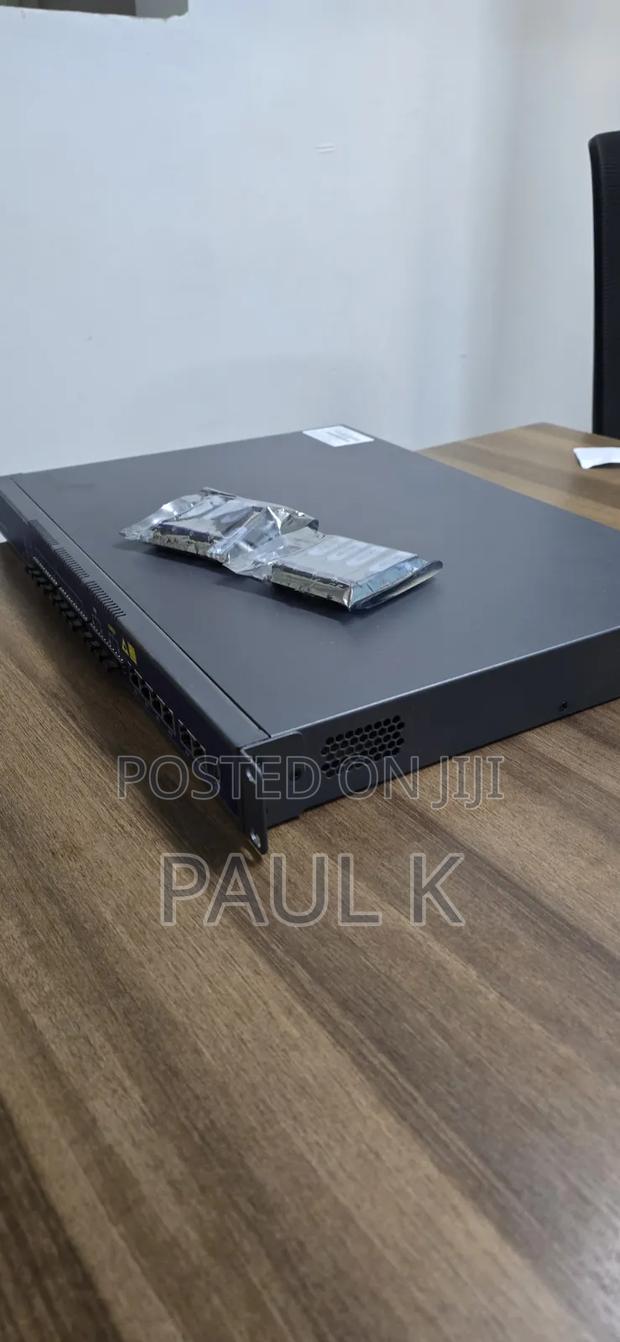

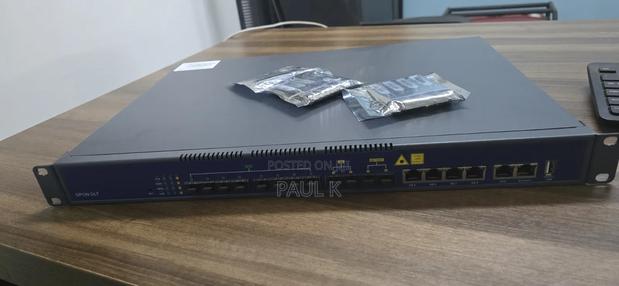

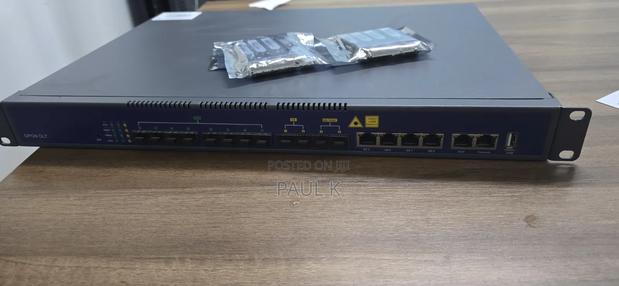

Vsol 8-Port Gpon Olt

Chassis rack 1u 19inch standard box uplink port qty 8 rj45(ge) 4 sfp(ge)/sfp+(10ge) 4 gpon port qty 8 physical interface sfp slots max splitting ratio 1:128 management ports 1*base-t out-band port, 1*console port, 1*usb2.0, 1*type-c usb (for console) backplane bandwidth (gbps) 240 port forwarding rate (mpps) 124.992 pon port specification transmission distance 20km gpon port speed upstream 1.244gbps, downstream 2.488gbps wavelength tx 1490nm, rx 1310nm connector sc/upc fiber type 9/125μm smf supported pon module level class b+, c, c+, c++, c+ , c+ power supply ac working voltage range: 100~240v, rated voltage: 110v/220v dc working voltage range: -36~-75v, rated voltage: -48v/-60v management mode ems, web, snmp, telnet, cli
