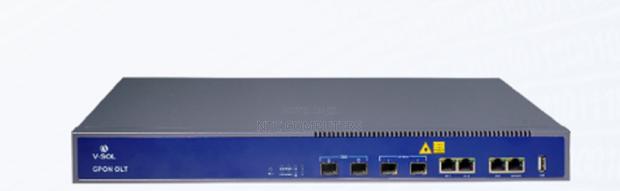

Vsol 2port Gpon Olt V1600gt

Chassis: 1u 19-inch standard box. uplink ports: 2x ge (rj45), 2x ge (sfp) / 2x 10ge (sfp+). gpon ports: 2x sfp slots. transmission distance: up to 20km. wavelength: tx 1490nm, rx 1310nm. connector: sc/upc. management ports: 1x base-t out-band port, 1x console port, 1x usb-com, 1x usb2.0. backplane bandwidth: 208 gbps. port forwarding rate: 40.176 mpps. pon port speed: upstream 1.244gbps, downstream 2.488gbps. max splitting ratio: 1:128. management modes: web, telnet, cli. power supply: ac (100~240v, 50/60hz) or dc (-36~-75v). dimensions (lxwxh): 442mm x 200mm x 43.6mm. working temperature: -20°c ~ +60°c. weight: 2.485kg.
