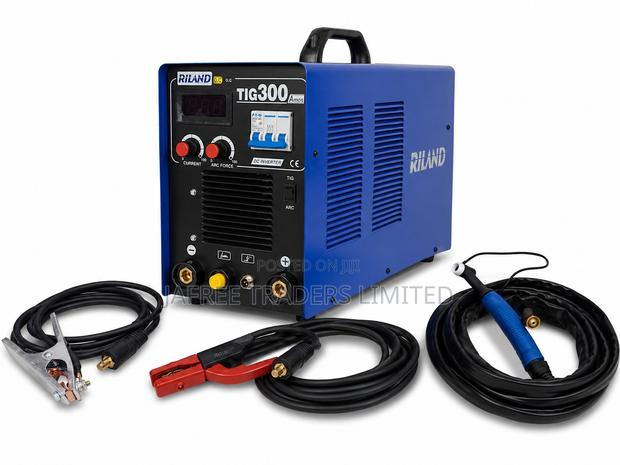

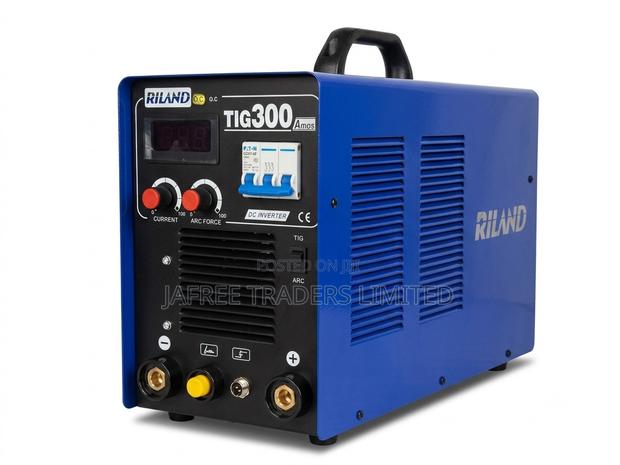

Tig 300a 3ph

•Input Voltage (V_IN): AC 380V±15%, 3P, •Input Frequency: 50/60 Hz. •Input Current (A_IN): 18.5A, •Input Power (P1): 12.2KVA. •Output Voltage (V_o): 54V, •Current Range (I2): 20-300A. •Duty Cycle: 60%, •Arc-Initiating: H-F (TIG). •Efficiency (η): 85%, •Power Factor (Φ): 0.93. •IP Protection Class: IP21, •Weight: 19KG. •Dimensions: 505X203X375 (mm), •Generator KW Required: 13.4KW. •Weldable Material: Mild steel, Stainless steel •Welding Rod Dia Used: 2.5-4.0mm
