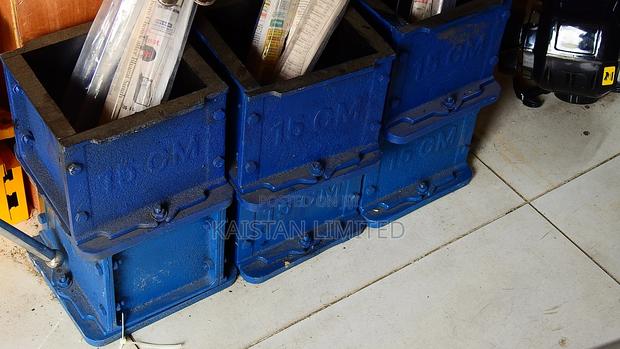

Test Molds For Concrete/ Cast Iron 150mm By 150mm By150mm

Test molds for concrete Concrete Cube Molds: Standard Size: 150 mm×150 mm×150 mm Other Common Sizes: 100 mm×100 mm×100 mm (often for concrete with smaller aggregate or mortar), 200 mm×200 mm×200 mm. The choice of cube size often depends on the maximum aggregate size in the mix (e.g., 100 mm moulds for aggregate ≤20 mm, 150 mm for aggregate ≤40 mm). Concrete Cylinder Molds: Standard Sizes (Diameter x Height): 150 mm×300 mm (6 inches×12 inches), or 100 mm×200 mm (4 inches×8 inches). Ratio: Cylinders typically have a height-to-diameter ratio of 2:1. Aggregate Size: The cylinder diameter should be at least three times the maximum nominal aggregate size. Concrete Beam Molds: Common Sizes (Width x Depth x Length): 150 mm×150 mm×750 mm, or 100 mm×100 mm×500 mm.
