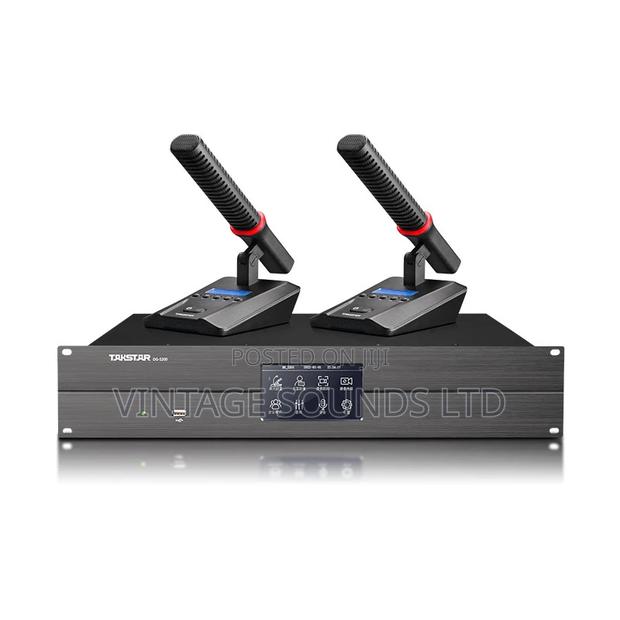

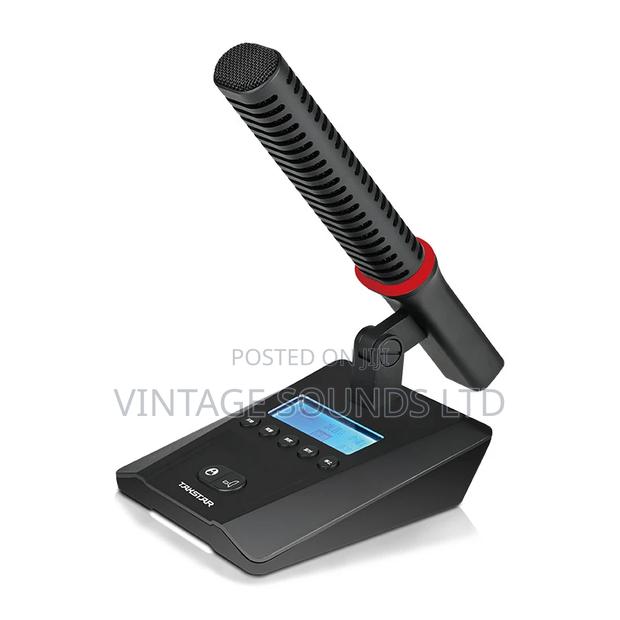

Takstar DG-S200 Wired Conference Microphone System

Wired conference system control unit • aux input voltage: 250(±20) mv • alarm input voltage: 250(±20) mv • max input voltage: 4(±0.2) mv • aux output voltage: 1(±0.1) mv • balance out voltage: 10(±5) mv • frequency response: 40hz-20khz(±3db) • thd + noise: <1% • operating voltage: 100-240v ac 50/60hz • static power consumption: < 15w • max power consumption: 350w wired conference system discussion unit • sensitivity: -38db/pa • frequency response: 50hz-12khz(±3db) • thd + noise: <1% • headphone output: 35mw, 32ω, 3.5mm • operating voltage: dc 24v from control unit • static power consumption: < 1w • max power consumption: 2w note: the above data is measured by takstar laboratory.
