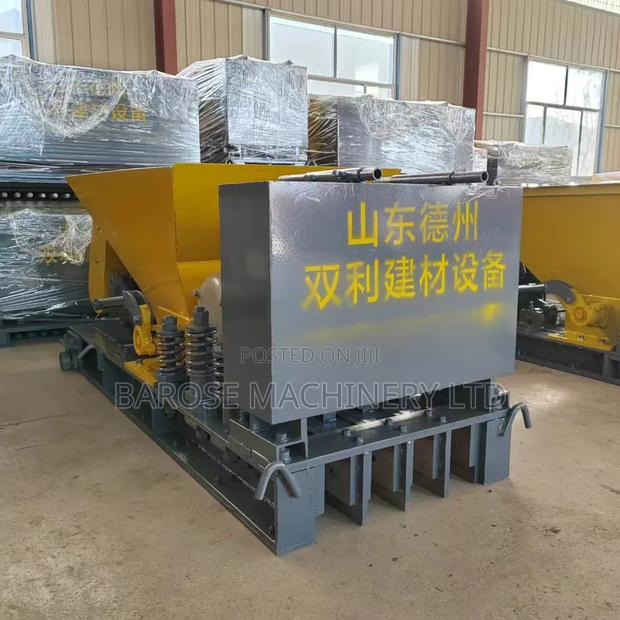

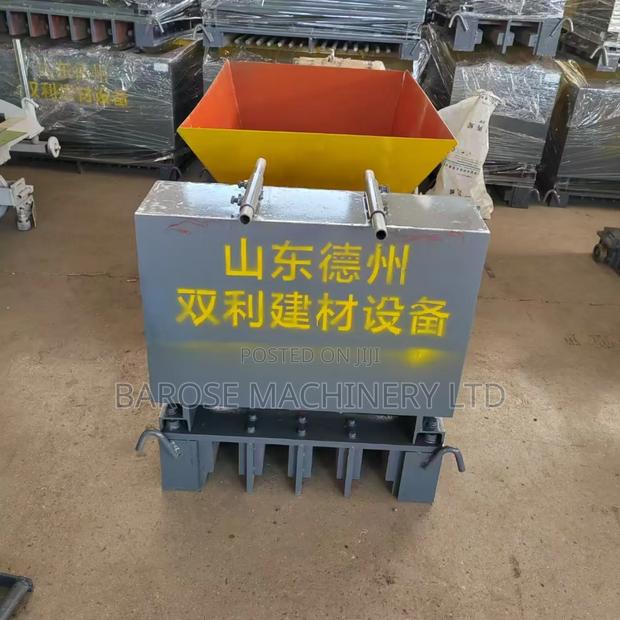

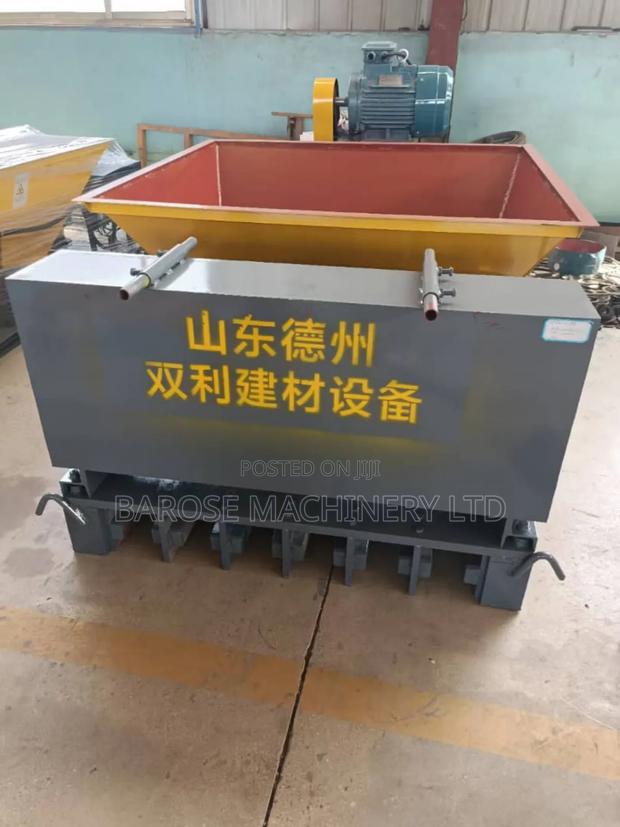

T-Beam Making Machine

Key Components and Features 1. Steel Mould/Formwork Forms the shape of the T-beam including the stem (vertical part) and flange (horizontal part). The mould is typically mounted on a long casting bed. 2. Vibrating System Helps compact the concrete during casting to remove air pockets and ensure a dense, strong product. 3. Concrete Hopper/Dispenser Feeds fresh concrete into the mould in a controlled manner. 4. Travelling Casting Unit Moves along the casting bed, depositing and compacting concrete into the mould. This can be motorized and automated. 5. Prestressing System (optional) For prestressed T-beams, the machine includes a system to tension steel strands before pouring concrete, which are then released after curing to apply compression to the beam. 6. Cutting and Demoulding Equipment: After curing, the beam is cut to size.
