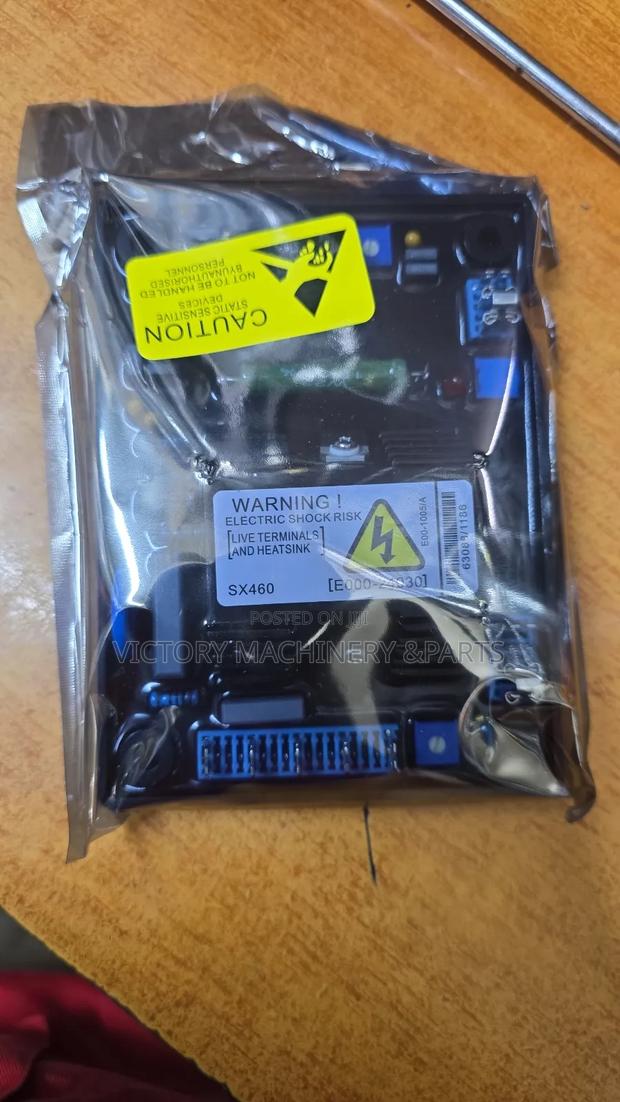

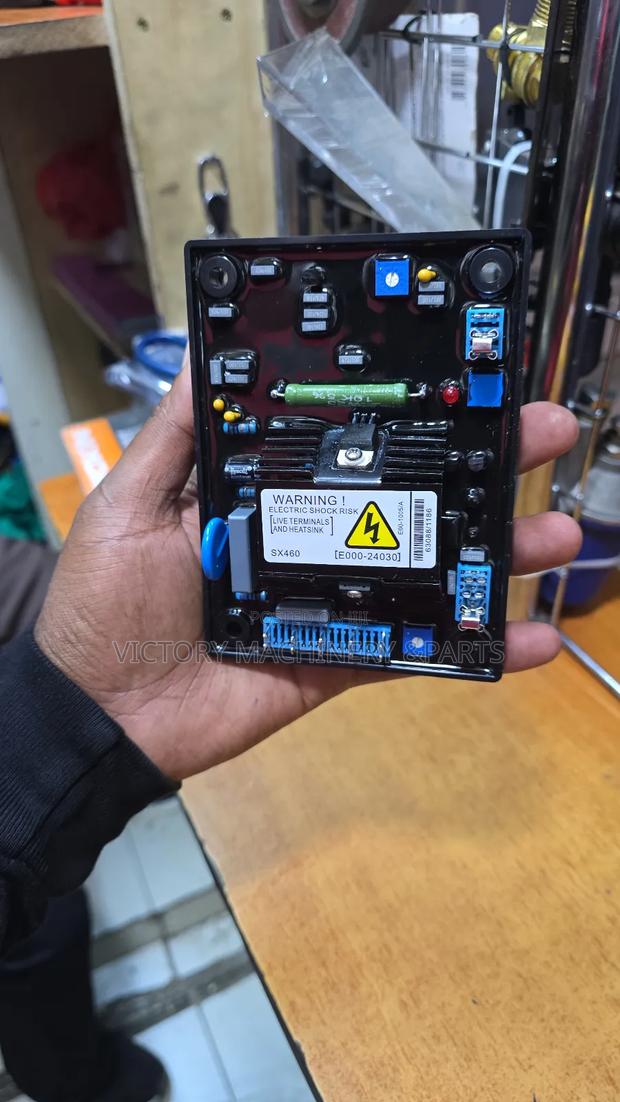

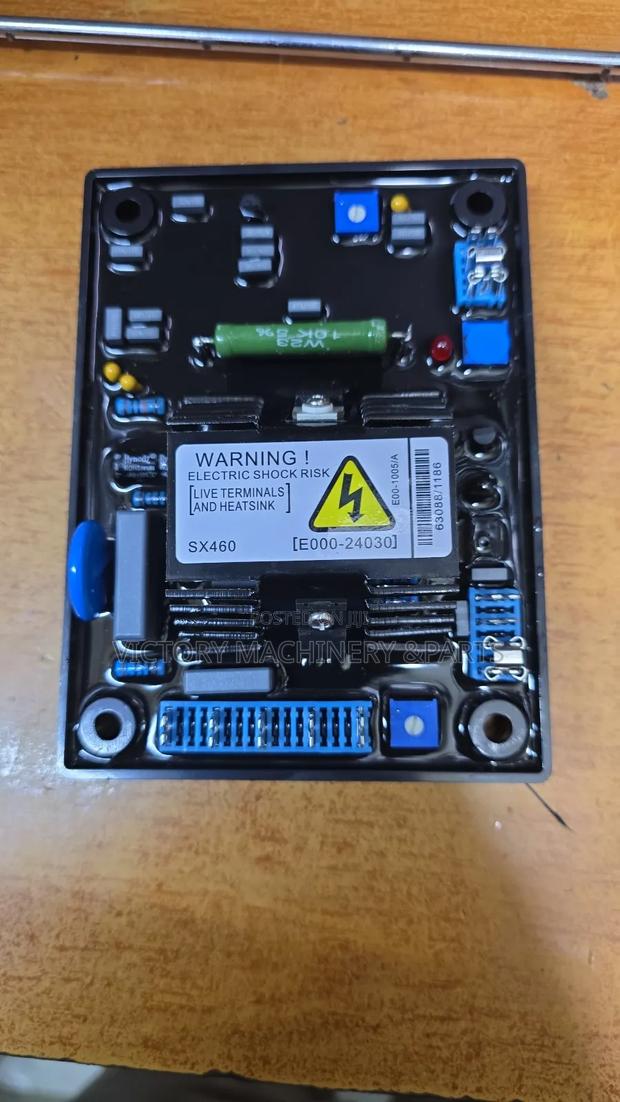

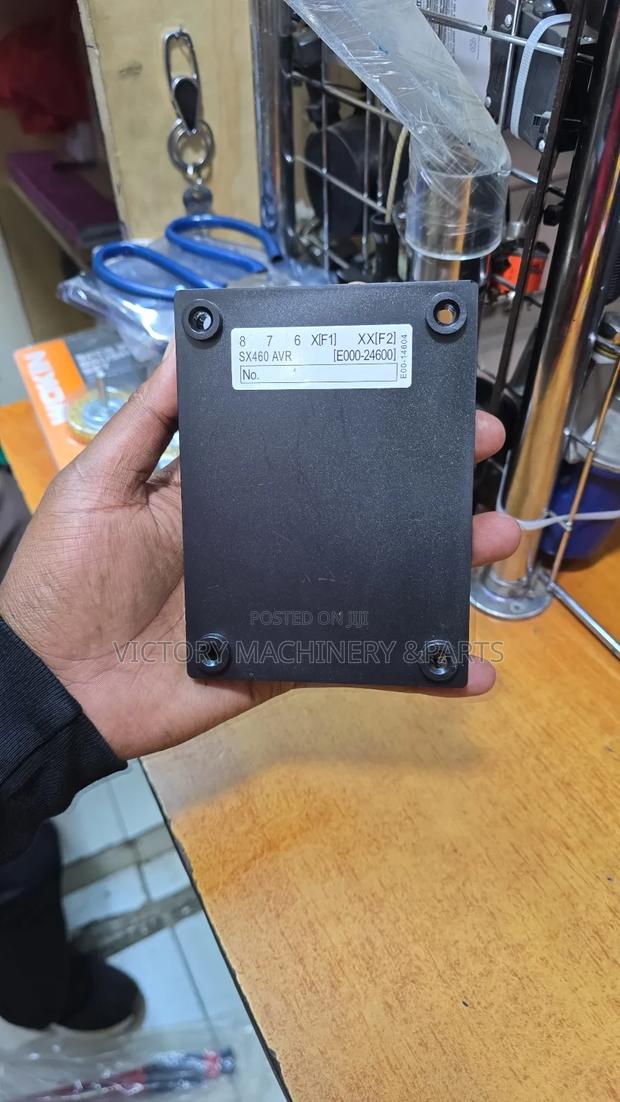

Sx 460 Diesel Generator Avr

Jumper selectable: 95-132v ac or 190-264v ac input frequency 50-60 hz nominal input phase 1-phase, 2-wire output voltage (max) 90v dc at 207v ac input output current continuous 4a dc; intermittent 6a dc for 10 seconds field resistance 15 ohms minimum regulation accuracy ±1.0% (with 4% engine governing) thermal drift 0.05% per °c change in avr ambient (after 10 mins) system response avr response: 20 ms; machine volts to 97%: 300 ms unit power dissipation maximum 10 watts operating temperature -40°c to +70°c vibration 20-100 hz at 50mm/sec; 100 hz-2 kh
