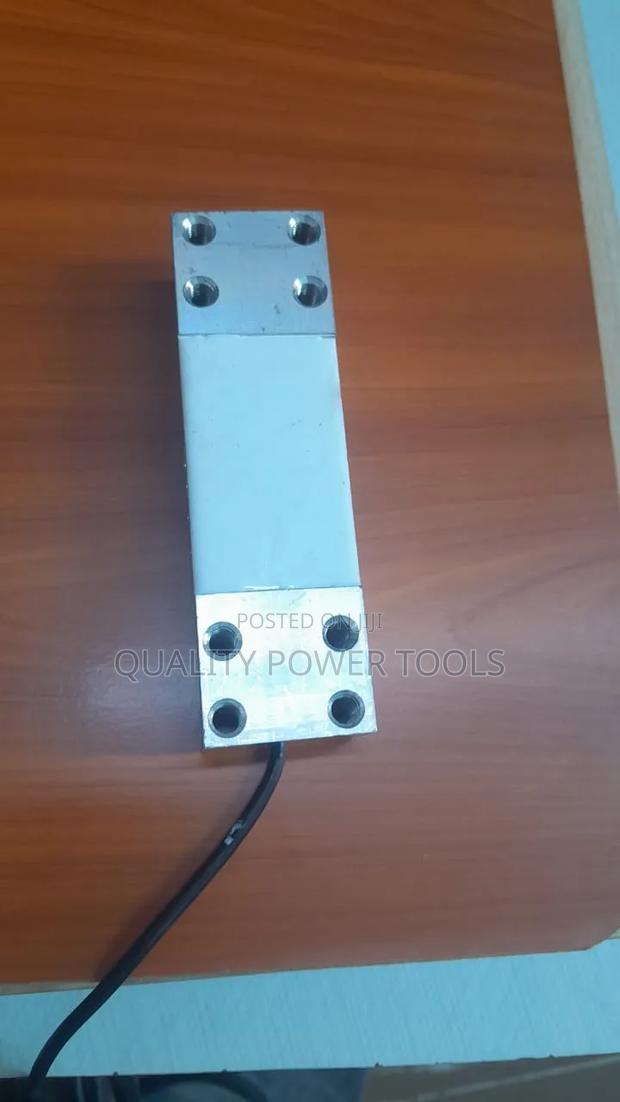

Single-Point Parallel Beam Load Cell

Parallel Beam Design: The internal cutouts (visible under the central protective cover) create a "parallelogram" structure that improves measurement stability and reduces error.Material: Usually high-grade aluminum alloy for lower capacities (commonly ranging from 3kg to 500kg) due to its durability and lightweight nature.High Accuracy: Often rated at C3 accuracy class, providing a precision of approximately \(\pm 0.02\%\) of the full scale.Protection: Typically features an anodized surface and silicon/glue sealing for corrosion resistance and moisture protection (often rated IP65).Mounting: It utilizes a standard 4-hole mounting pattern—typically two holes at each end (e.g., M4 or M5 threads)—for easy integration into bench or retail scales.
