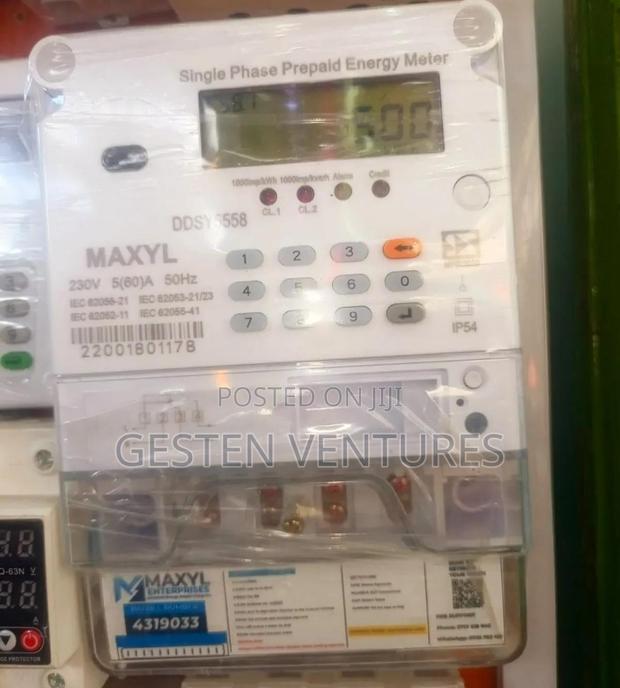

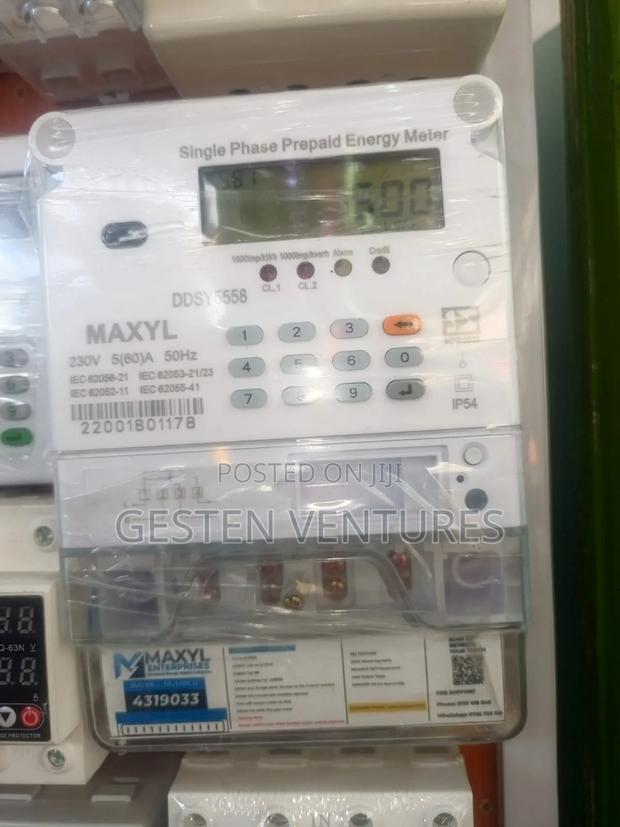

Single Phase Prepaid Energy Token Meter

• Phase Configuration: 1 Phase, 2 Wire (1P2W) household electrical setup. • Voltage Rating: Operates at a standard household voltage of 230V AC at a frequency of 50Hz. • Current Threshold: 5(60)A—meaning it safely operates at a base current of 5 Amps but can withstand a maximum current threshold of up to 60 Amps. • Accuracy Standard: Certified as an Accuracy Class 1 meter under standard international regulations (IEC 62053-21 / IEC 62055-31) to ensure precision billing. • Pulse Constant: 1000 imp/kWh (The red LED light labeled "CL1" flashes 1,000 times for every 1 kilowatt-hour of power consumed). • Enclosure Rating: IP54 certified, offering robust protection against dust ingress and water splashes
