Rocker Switches

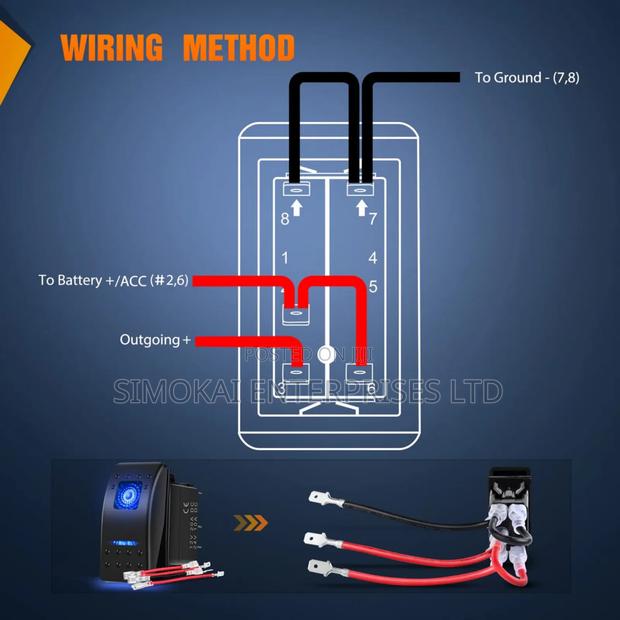

These 5-pin, waterproof, ON/OFF rectangular rocker switches with blue illumination for 12V & 24V DC. Features a rubber gasket that seals against the mounting surface to protect against moisture and has an ingress protection rating of IP67, making it suitable for marine and external applications where it is exposed to the elements. Press fits into a 37.2mm x 21.2mm panel cut-out. Specifications Operation type: ON/OFF Pole/way: 1 pole / 1 way Voltage rating: 12V & 24V DC Current rating: 20A@12V DC, 10A@24V DC Ingress protection rating: IP67 Body color: Black Illumination color: Blue Terminals: 6.3mm blade Panel cut-out size: 37.2 x 21.2 mm Minimum panel thickness required: 6mm. Overall dimensions (including terminals): 48.8 (H) x 24.7 (W) x 54 (D) mm
