Pioneer Subwoofer

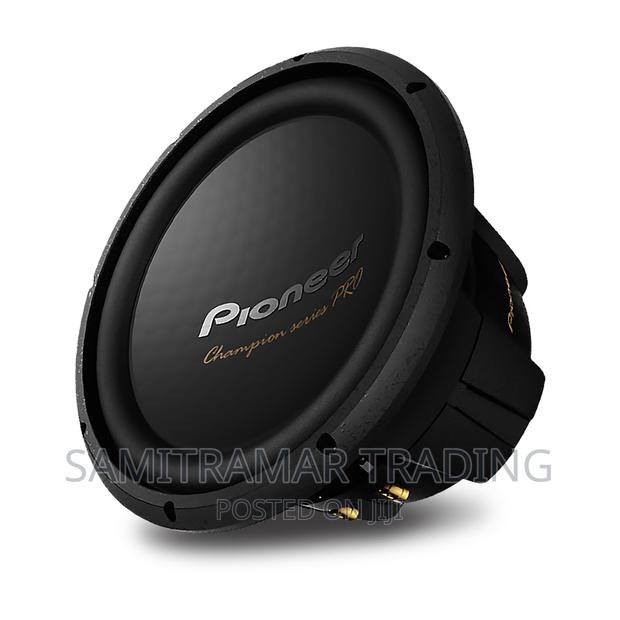

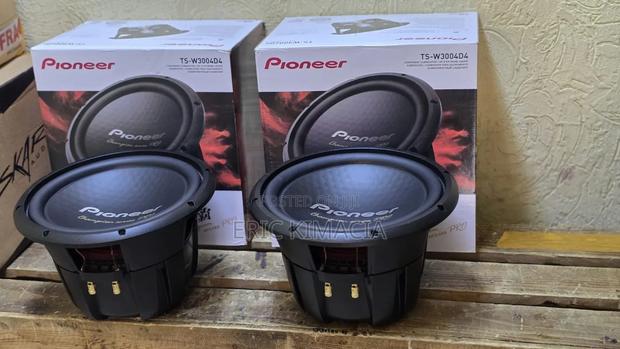

The Pioneer TS-W3004D4 is a 12-inch dual voice coil (DVC) subwoofer from Pioneer’s Champion Series Pro lineup. Key specifications include: Size 12" (30 cm) RMS Power 800 W Max Power 2400 W Voice Coils Dual 4 Ω (DVC) Sensitivity 94 dB (1W/1m) Frequency Response 20 Hz – 1.6 kHz Mounting Depth 190 mm Cutout Diameter 283 mm Resonant Frequency (Fs) 37 Hz Xmax 19.4 mm Magnet Weight 3,250 g (115 oz) Recommended Enclosure Volume 35.4 L (1.25 cu ft) Features Dual 4-ohm voice coils allow wiring for 2 Ω or 8 Ω loads. Double-stacked magnet motor for high output bass. Dual spider suspension for better control and durability. Fiber-reinforced elastic polymer surround for long-term reliability. Large voice coil and ventilated basket for improved cooling.
