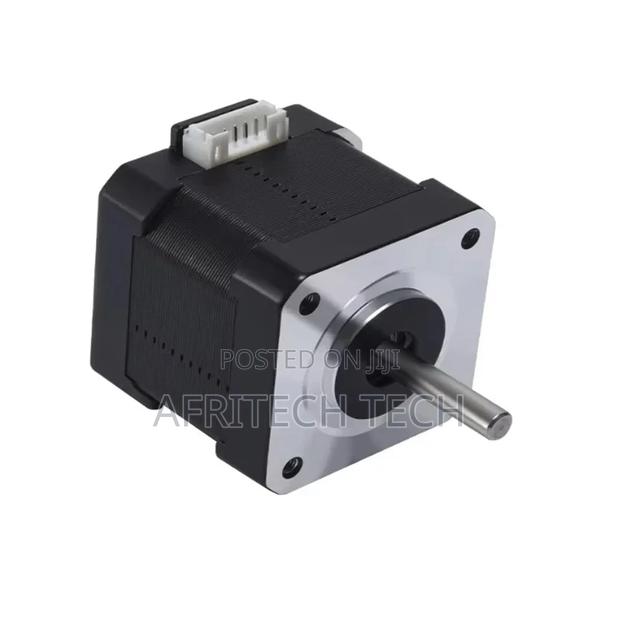

Nema 17 Stepper Motor

Step Angle(degrees):1.8° Rated Current:DC 1.5A/Phase Rated Voltage:DC 3.6V Holding Torque:≥420mN.m Insulation class:B Insulation resistance:≥100 MΩ (DC 500V) Maximum starting rate:≥1500 PPS Positioning Torque: 15 mN.m REF. Phase Inductance:3.7*(1±20%)mH/Phase Electrical strength:AC600V/1mA/1S Maximum slewing rate:≥1900 PPS Rotating direction: A-C B-D Clockwise Phase Resistance(20°C):2.4*(1±15%)Ω/Phase Phase:2
