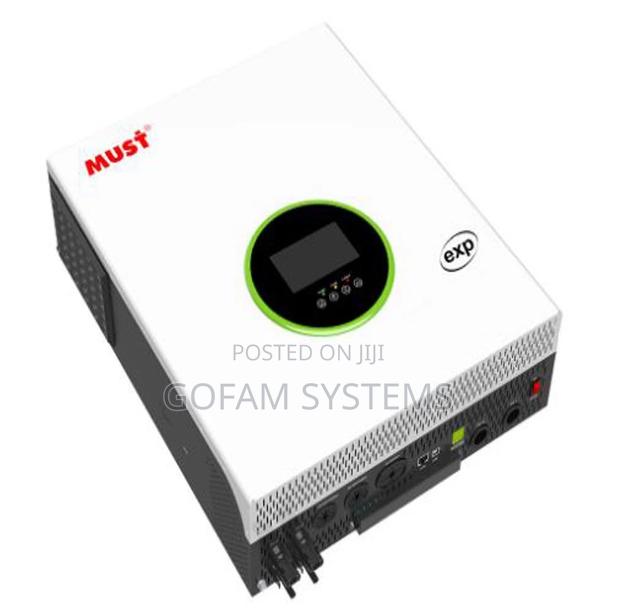

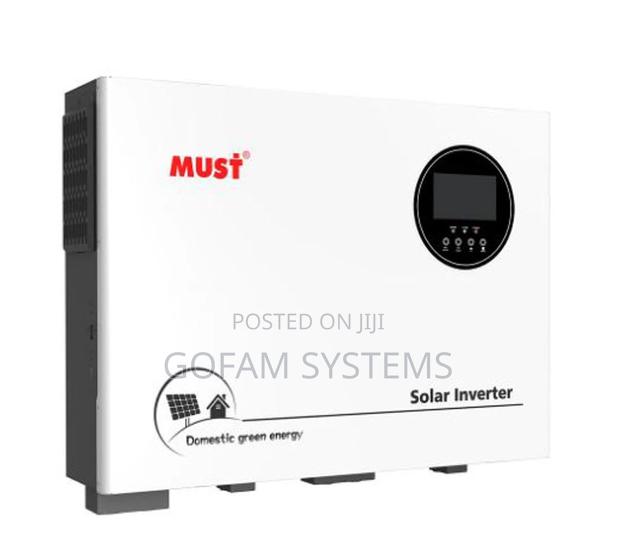

Must 10kva 48v 150a Hybrid Solar Inverter (Highfrequency)

3 photos
Product Description
Rated Power 10kVA / 10kW
DC Input Voltage 48VDC
Max Solar Charging Current 150A (PV1900M EXP) or 100A (PH18-10048 PRO)
Max AC Charge Current 100A to 160A (depending on model variant)
Maximum PV Array Open Circuit Voltage 500VDC
MPPT Operating Voltage Range 120V - 450VDC
Waveform Pure Sine Wave
AC Output Voltage 230VAC (customizable)
Transfer Time 10ms (UPS mode) / 20ms (Appliances mode)
Specifications
- Category
- Solar Power Inverters
- Condition
- Not Specified
- Availability
- In Stock
