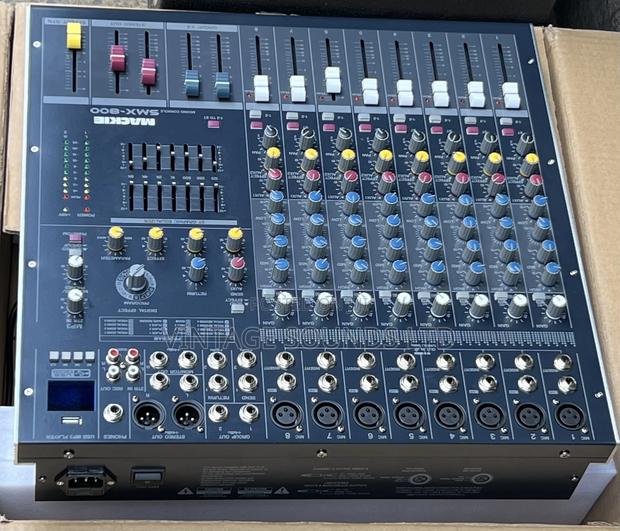

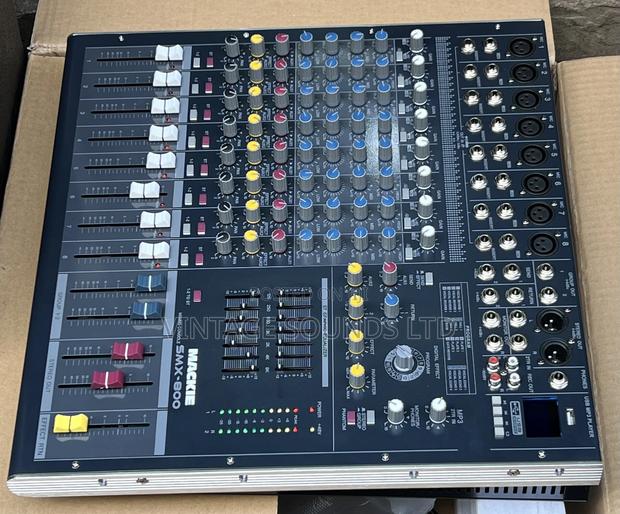

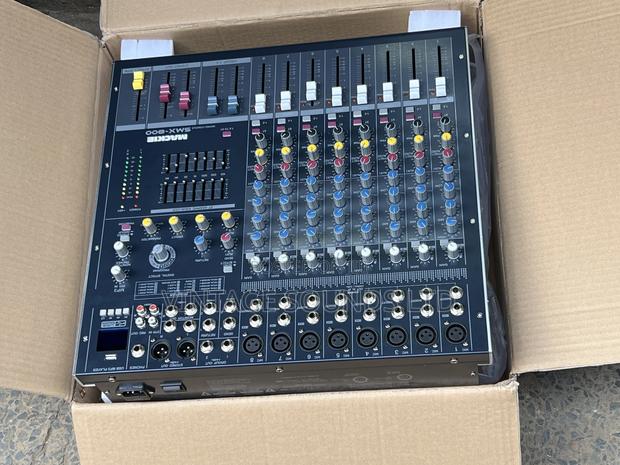

Mackie Smx800 8channel Live Mixer

Highlights – 24bit processor – 8 ch with mic & line (16 inputs) – effect send & return (connect to an effecter) – connect the unit with amplifier and box speaker – connect with recorder or other sound source to send the signal out or pick in the signal – record input level controller – time delay and pan adjusting – peak leds, mute, main mix and subgroup routing switches, solo and pfl functions on all channels – input sensitivity: -60dbm ~ -40dbm – nominal input level: mic -60dbm, line -20dbm, eff ret -20dbm, aux in -20dbm, tape in-10dbm – nominal output level: eff send -10dbm, aux send 0dbm – common mode rejection: -70db – output voltage (mixer part): 4v max – s/n ratio: >80db – thd (1khz full power): less than 0.03% (at 1 khz) – frequency response: 20hz-20khz+3db – headphone: 7v/220ohm – parametric cq: hi +15db/12khz, mid +15db/2.5khz, low +15db/80khz – power consumption: 30w – power supply: ac 220v-240v/50-60hz – includes: 1x power adaptor, 1x user’s manual
