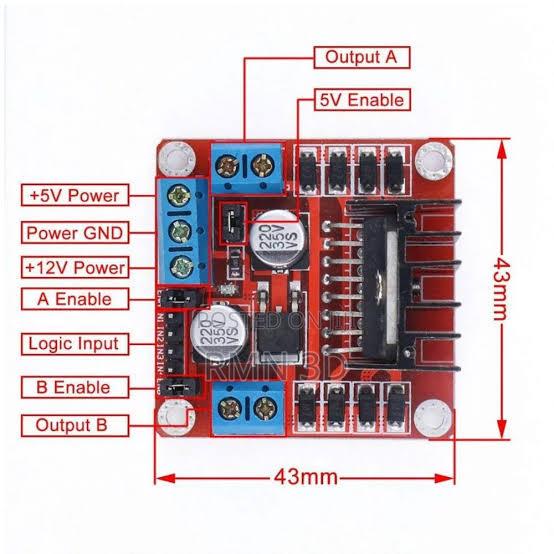

LN298N Motor Driver

Type: Dual full H‐bridge driver Motor Voltage Range: 5–35 V Logic Voltage: 5 V (TTL compatible) Current Capacity: Up to 2 A continuous per channel, 3 A peak (with heatsink) Control Signals: IN1/IN2, IN3/IN4 → Direction control ENA/ENB → Enable pins (PWM for speed control) Voltage Drop: ~1.5–2.5 V (due to bipolar transistors, reduces efficiency) Onboard Regulator: 78M05 provides 5 V logic supply when motor voltage ≤ 12 V Protection: Thermal shutdown and current sensing pins availabl
