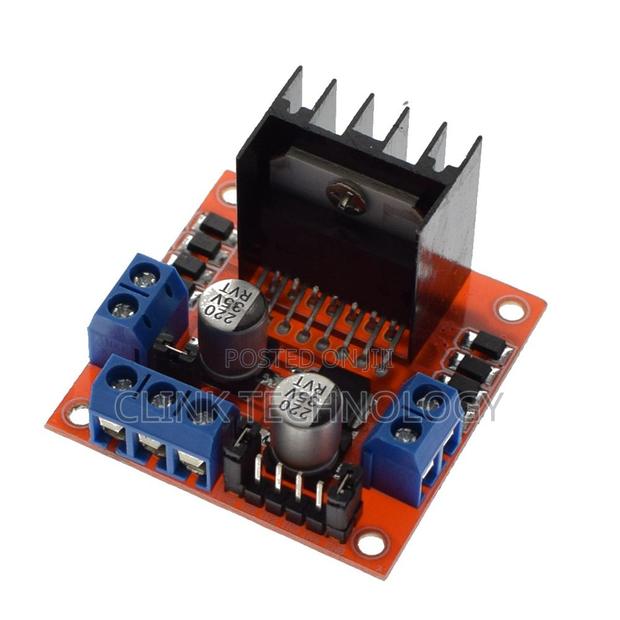

L298N Dual Bridge DC Stepper Motor Driver Board

Driver: L298N Dual H Bridge DC Motor Driver IC Driven the terminal supply area Vs: +5V ~ + 35V; Such as need to take power inside the board, supply area Vs: + 7V ~ + 35V Driven part of the maximum current Io: 2A The logical part of the voltage of the terminal Vss: + 5V ~ + 7V (can use power within + 5V) The logical the current range: 0 ~ 36mA Voltage control signal range: Low: - 0.3 Volts High: 2.3 Volts Enable input voltage signal: Low: - 0.3 High: 2.3 Volts Maximum power consumption: 20 watts (when the temperature T = 75 degrees C) Temperature: -25 degrees C ~ + 130 degrees Celsius Other extensions: Direction control, logical part of the plate to take power interface.
