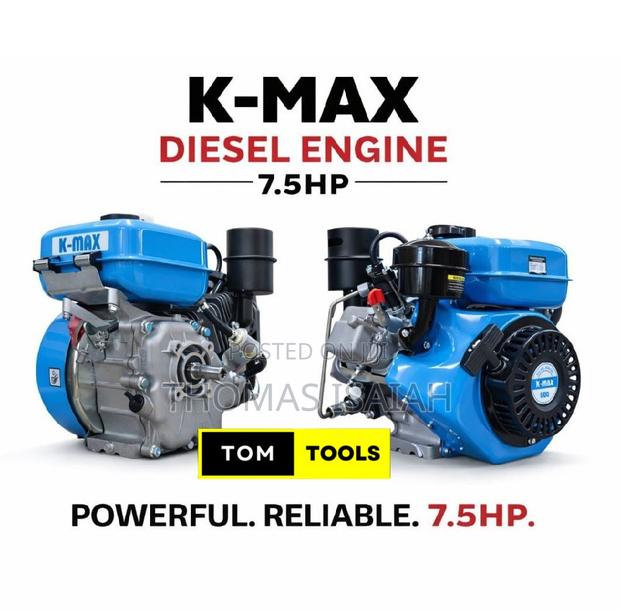

KMAX 7.5HP Diesel Engine

- model: 186fa - material: iron, die-casting aluminum, aluminum - machine type: single-cylinder, vertical, 4-stroke, forced air-cooled - shaft type: recoil manual start - crankshaft: horizontal - fuel type: diesel - bolt pattern: 4 bolt - combustion system: direct injection - lubrication mode: pressure and splash compound method - power: 7.5hp - rotation speed: 3600rpm - displacement: 418cc - fuel tank capacity: 5.5l/1.45gal - lubricating oil volume: 1.65l/0.44gal - fuel consumption rate: ≤280g/kw. h - compression ratio: 19:1 - bore stroke: 86x72mm - shaft diameter: 25mm - shaft length: 72.2mm - shaft i.d. thread size: 7/16-20ufn-2b, 20mm depth - gross weight: 49.85kg/109.9lbs - net weight: 41.85kg/92.26lbs - package includes: 1 x diesel engine, 1 x english manual, all accessories for assembly
