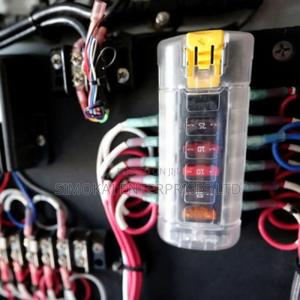

Independent Circuit Fuse Block With Cove

Quality fuse block that accepts standard ATC/ATO fuses. 6 independent circuits and a plastic cover. 30A max per circuit. Specifications Dimensions: 54mm x 132mm x 38mm (WxHxD). Can be used for 24-hour circuits Incorporates an easy to open push button latch providing easy access to fuses Storage for one spare fuse, and recesses for labeled circuit identification Tin-plated copper buses and fuse clips Accepts ring or spade type terminals Accepts ATO and ATC fast acting blade fuses Voltage Maximum Operating 32V DC Amperage Maximum Operating (per circuit) 30 Amps Screw Terminal #8-32 Screws with captive star lock washer Mounting #8 Screw (M4) Fuses sold separately.
