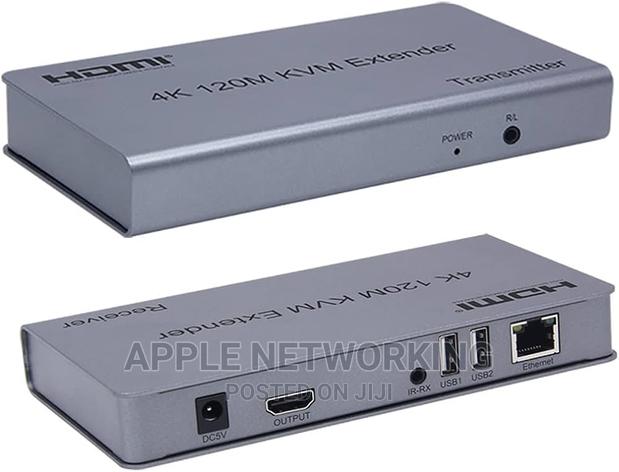

Hdmi 120m Extender

Hdmiinput:4k/1080p/720p/576p/576i/480p/480i. support audio format:dts/dolby/lpcm. hdmi output:4k/1080p/720p/576p/576i/480p/480i. max bandwidth: 600mhz. max baud rate: 6gbps x3. input video signal: 0.5~1.5volts p-p. output ddc signal: 5volts p-p (ttl). input hdmi cable distance: ≤10m awg26 hdmi standard cable. output hdmi cable distance: ≤10m awg26 hdmi standard cable. tx max working current: 350ma. rx max working current: 200ma. power adapter format: input:ac (50hz, 60hz) 100v-240v; output: dc5v/1a. operating temperature range: (-15 to +55°c). operating humidity range: 5% to 90%rh (no condensation). dimension (l x w x h): 94x84x24(mm)
