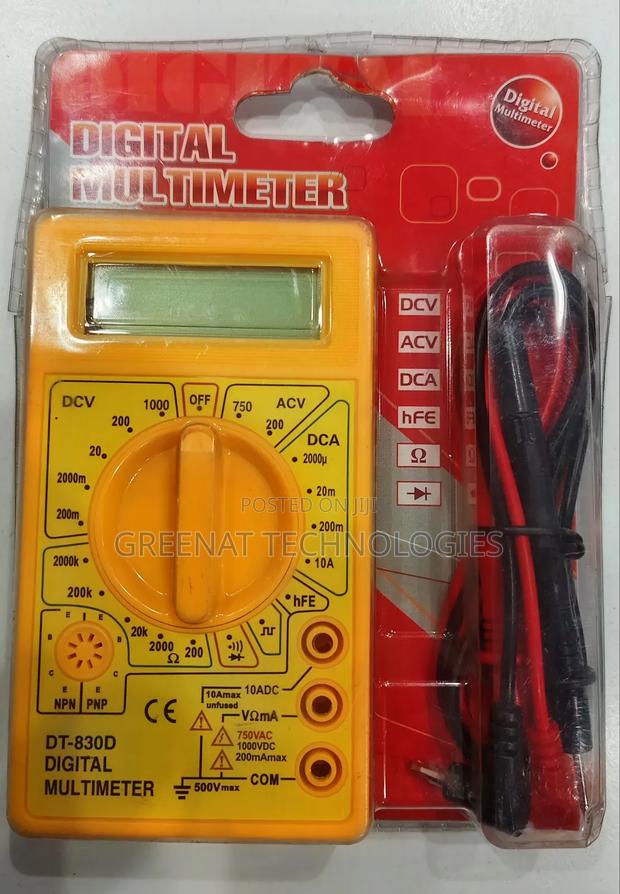

Digital Multimeter DT830D Professional Digital Multi Meter Tester
Product Description
Measurement range:
dc voltage: 200mv, 2000mv, 20v, 200v, 1000v (accuracy ±0.5% to ±1.2%)
ac voltage: 200v, 750v (45hz - 450hz)
what you get:
- 1 x dt-830d digital multimeter (yellow)
- 1 x set of test leads (red and black)
- 1 x 9v battery (inside)
- 1 x operator's instruction manual
- 1 x blister gift box packing
model: dt-830d digital multimeter
display: 3.5 digit lcd
power: 9v battery
dcv resolution: 100uv to 1v, accuracy ±(0.5% rdg +2d) to ±(1.2% rdg +5d)
acv response: average responding, calibrated in rms of sine wave
dca resolution: 100na to 10ma
resistance resolution: 0.1ω to 1kω
overload protection: 1000v dc or 750v rms ac, 15 sec max 220v rms
audible continuity: built-in buzzer sounds if resistance < 30±20ω
operating: transistor hfe test with npn pnp socket, diode test, continuity buzzer, test signal use
