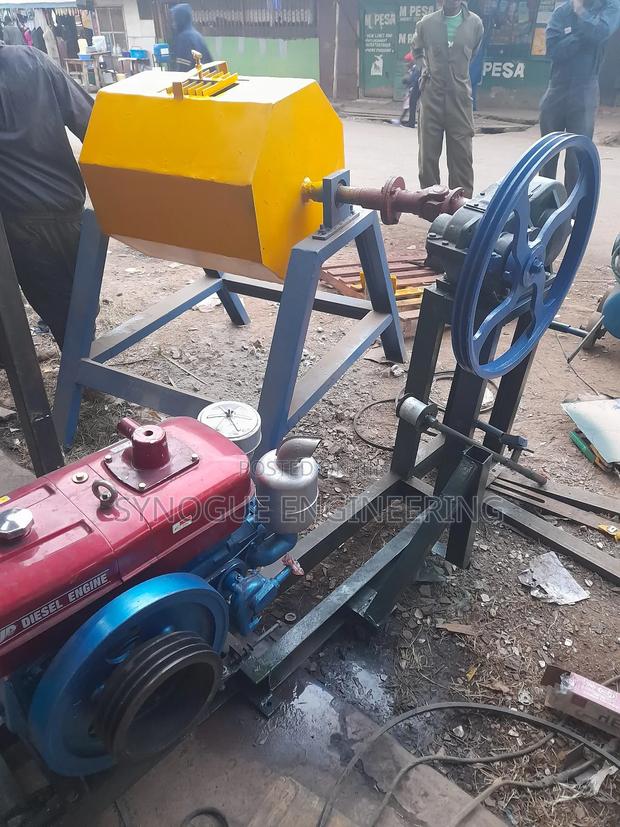

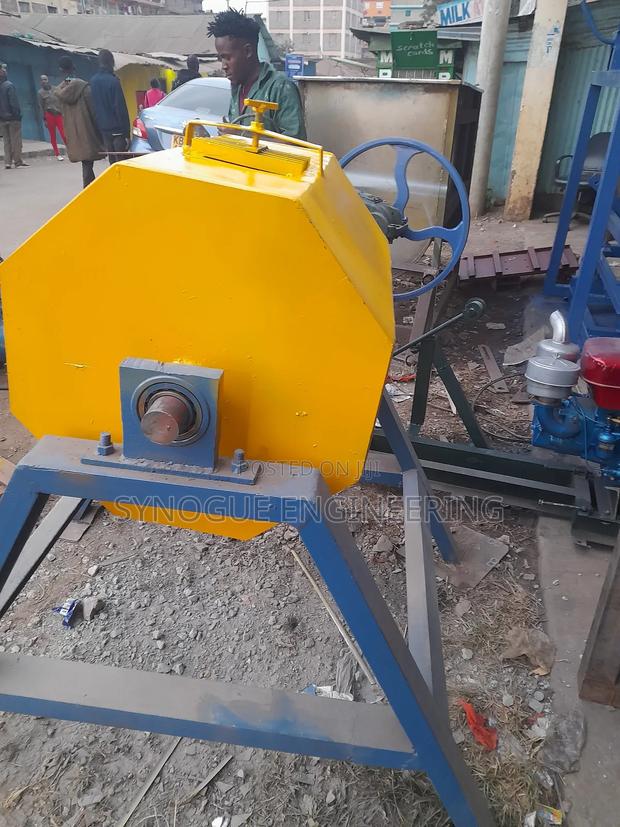

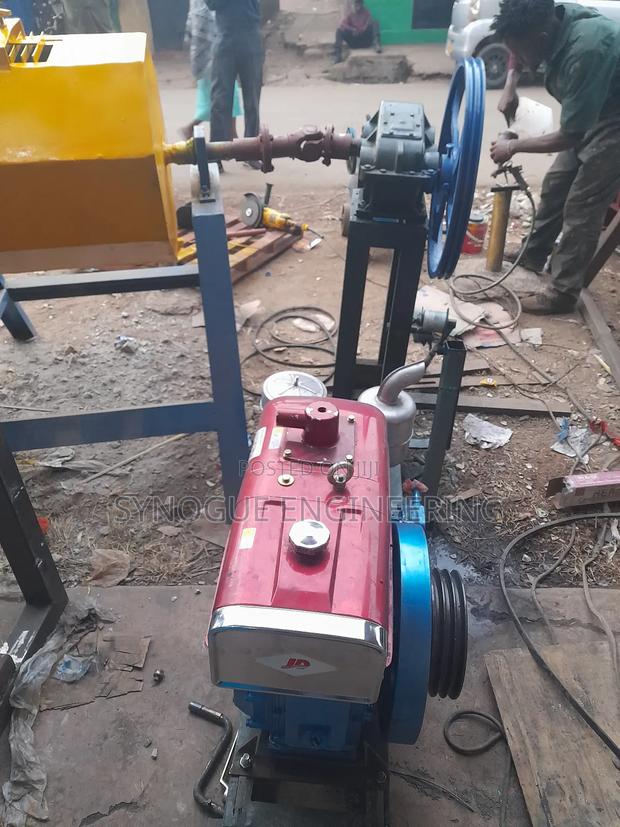

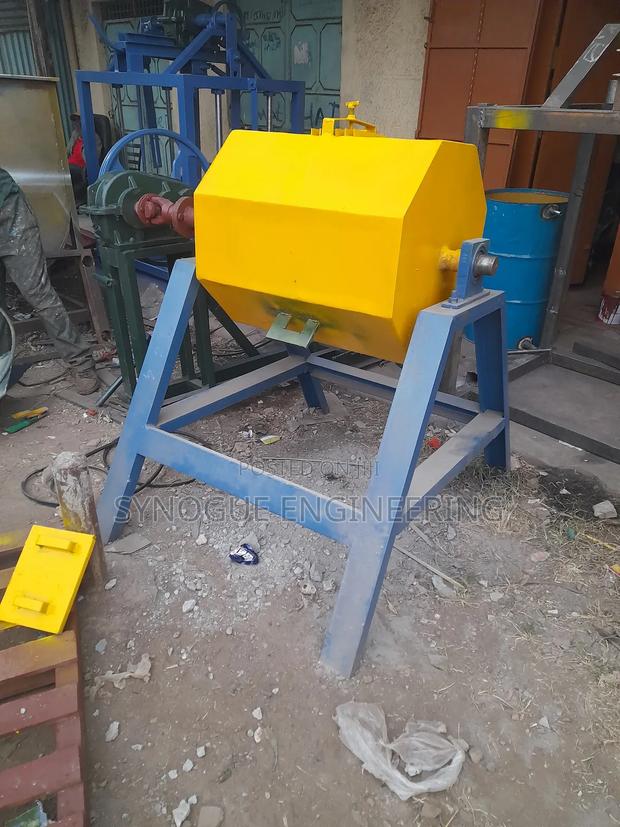

Ball Milling Machine

Our Energy-Saving Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished. Our machines offers a top notch milling efficiency with modern mechanical designs. Technical Specifications:- *Production Capacity: 300Kgs/Hr *Material: Mild steel plate *Feeding Size: 0-25mm *Output Size: 0.3-0.4mm *Power Consumption: 15Kw *Bucket Speed: 38R/Pm *Automation: Motor /Engine
