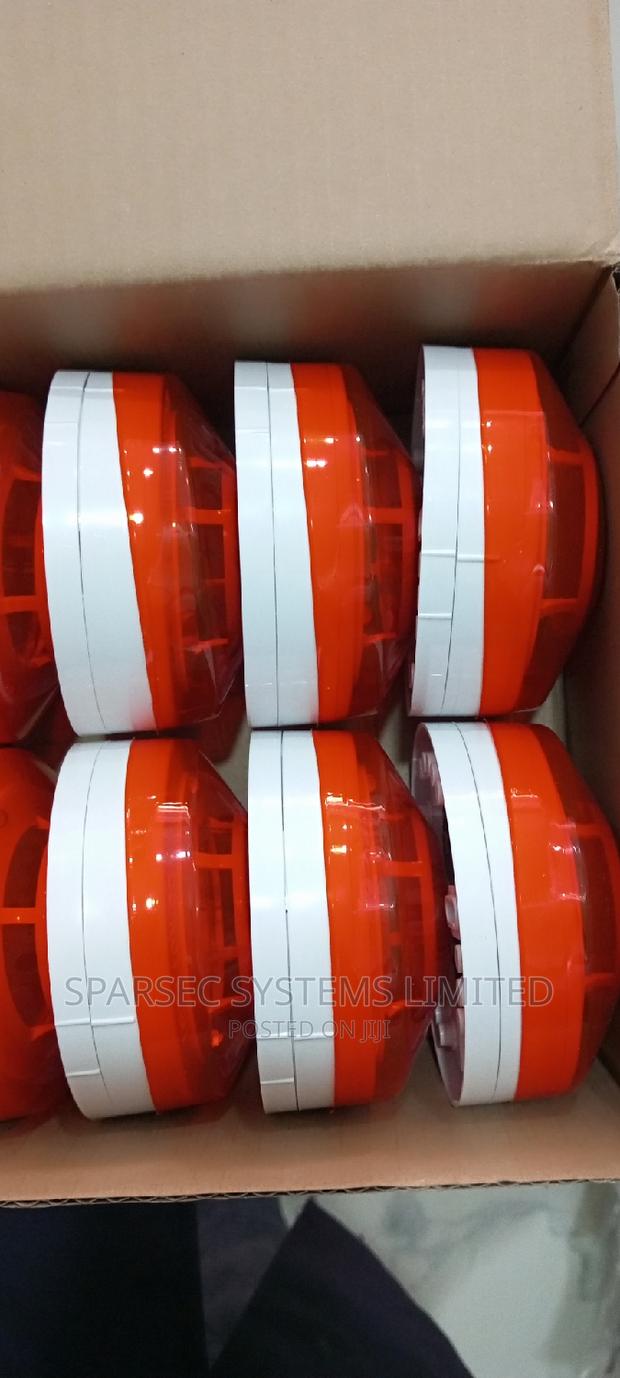

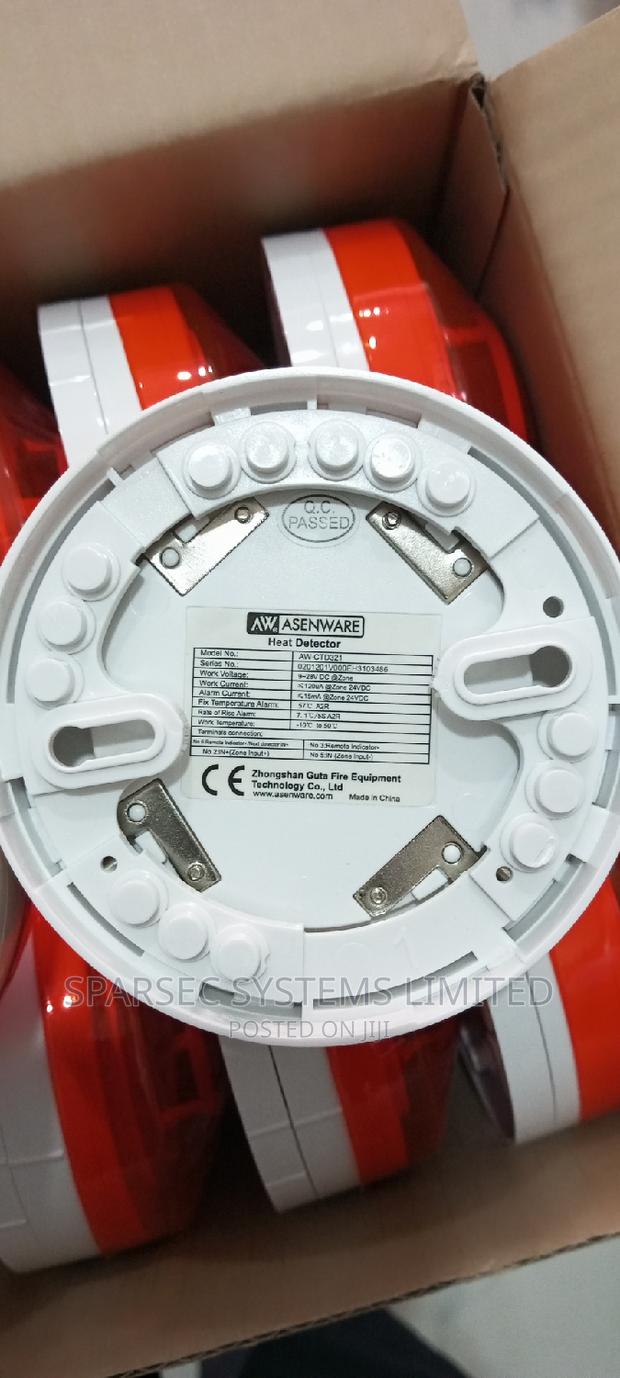

Asenware Conventional Heat Detector

Asenware Fire Alarm Smoke Detector uses a state-of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with the most conventional fire alarm panel. Operating Voltage Range: 9 to 28 VDC Non-polarized Standby Current: ≤120uA Maximum Alarm Current(LED on): ≤15mA (1K Ohm current-limiting resistance) Operating Humidity Range: ≤95%RH(40°C±2°C)RelativeHumidity, Non-condensing Operating Temperature Range: -10°C to 50°C(14oF to 122oF) Smoke Alarm Sensitivity: 0.1-0.15dB/m Height: 48.2mm installed in Base Diameter: 99.45mm Standard Number ref: EN 54-7:2000
