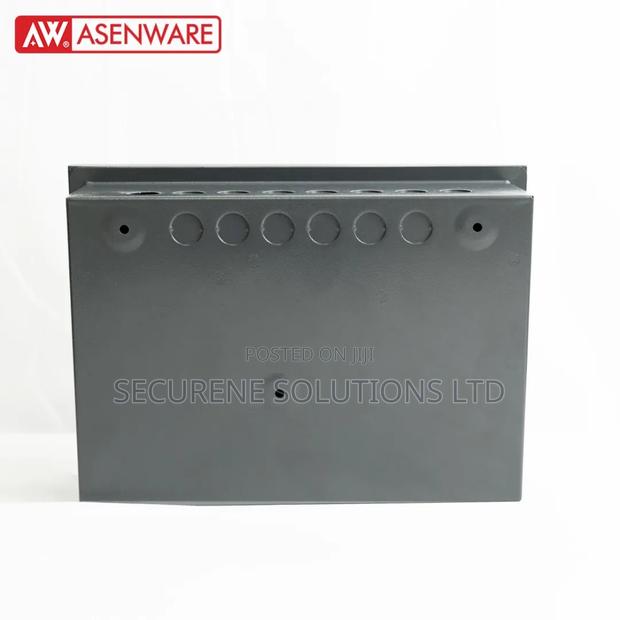

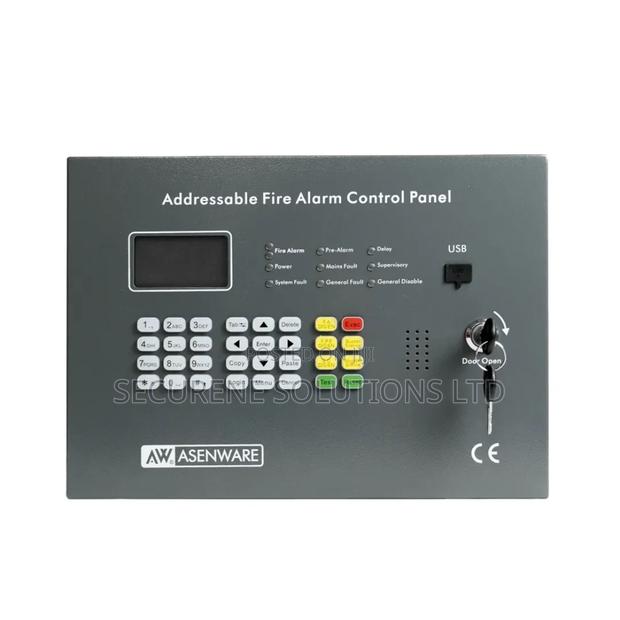

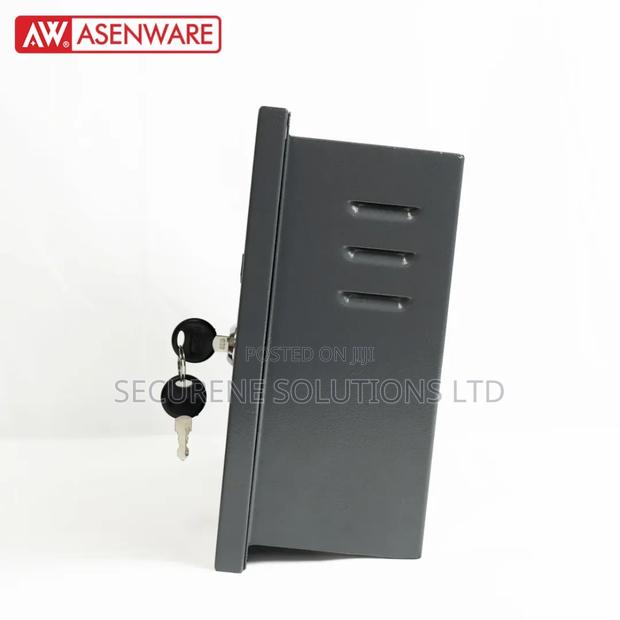

Asenware Aw-Fp128 Fire Alarm Control Panel (Facp)

The purpose of the AW-FP128 Fire Alarm Control Panel (FACP) is to monitor input signals, give indications and possibly activate outputs as programmed. It is designed to comply with EN 54-2 with qualities of simple installation, operation and easy maintenance. The AW-FP128 panel is an addressable fire detection panel with 1 loop of 128 addressable points and expansion capabilities. It is compatible with other peripherals made by ASENWARE with its own protocol. Technical Parameters: Model AW-FP128 Addressable Fire Alarm Control Panel Mains Supply 110V/230V* AC (-15%, +10%),50Hz*/60Hz Operating Voltage 20-28VDC Recommended mains cable Screened or standard/black mains cable, cable size 0.75mm2 Power rating Imax.a=1.2A; Imax.b=2.6A; Imin=0.65A Max. charging current 1A Max. battery supply current
