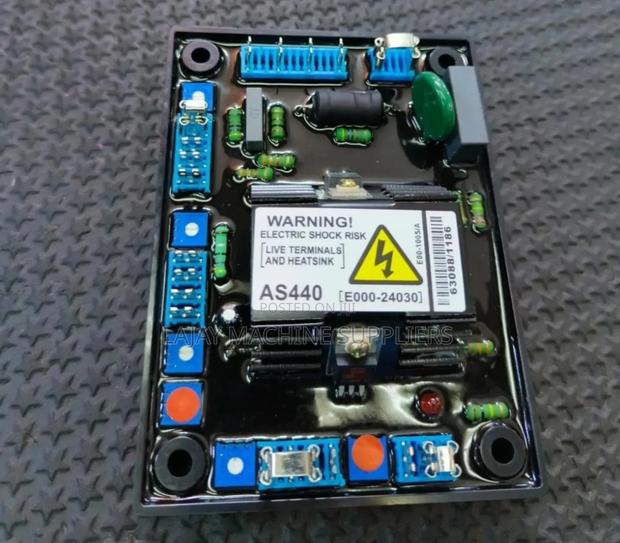

As440 Automatic Voltage Regulator (Avr)

Voltage jumper selectable 100-130 vac 1 phase or 190-264 vac 1 phase frequency 50-60 hz nominal power input voltage 100-264 v ac 1 phase frequency 50-60 hz nominal output voltage 82 v d.c. @ 200 v a.c. current continuous 4a (see note 1). transient 7.5a for 10 secs. resistance 15 ohms min (10 ohms min when input volts is less than 175 ac) regulation +/- 1.0% (see note 2) thermal drift 0.03% per deg. c change in avr ambient (see note 3) typical system response avr response 20 ms filed current to 90% 80 ms machine volts to 97% 300 ms
