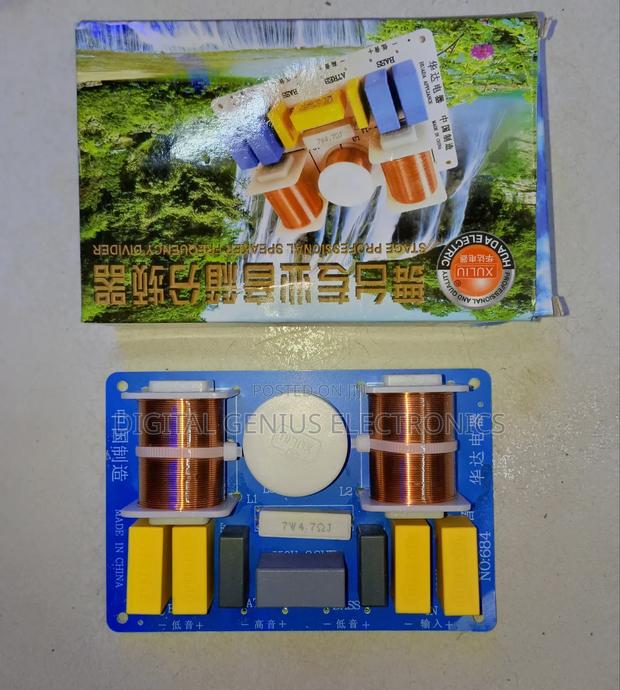

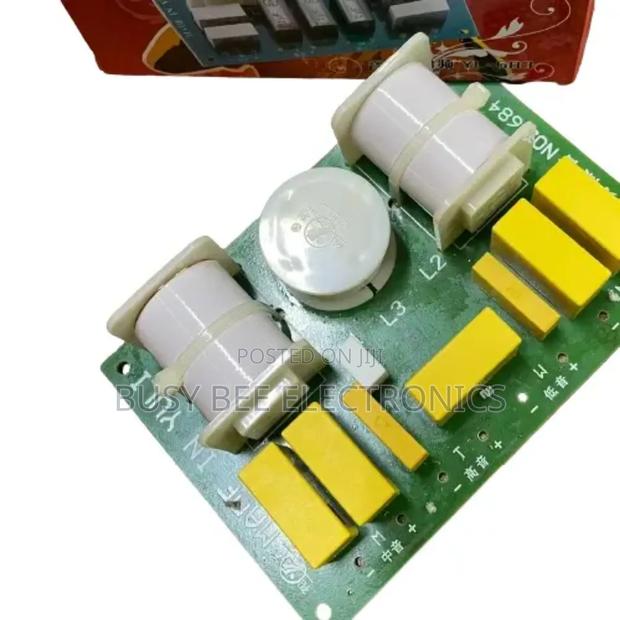

2 Way Crossover Amplifier 400w 684

Ohm Nominal Impedance, PC Board Design with Plastic Stand Offs, note that some soldering is required to attach the wires to the circuit board. PC Board Design 400 Watts RMS Power Rating 8-ohm impedance Crossover point at 3400 Hz. 12 dB Octave Slope Size L x W x H 115 x 70 x 37 mm or 4 5/8′′ x 2 3/4′′ x 1 1/2′′ Suitable for a general 2-way design, will work with any speaker size. At 6 ohms, the crossover point would be 5250Hz. Terminal Cups: Outside Diameter: 3 5/8′′ Inside cabinet cutout: 2 7/8′′ x 2 1/8′′ Depth: 3/4′′ Mounting Holes: 3 3/15′′ x 2 1/4′′ Nice small rectangle terminal cups with gold posts and colored identification for easy hookup.
