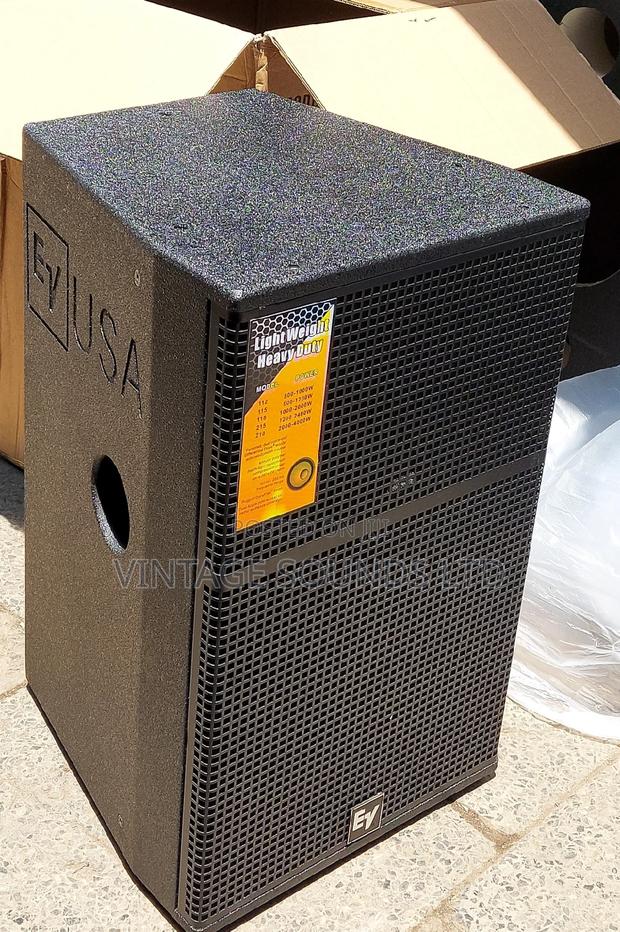

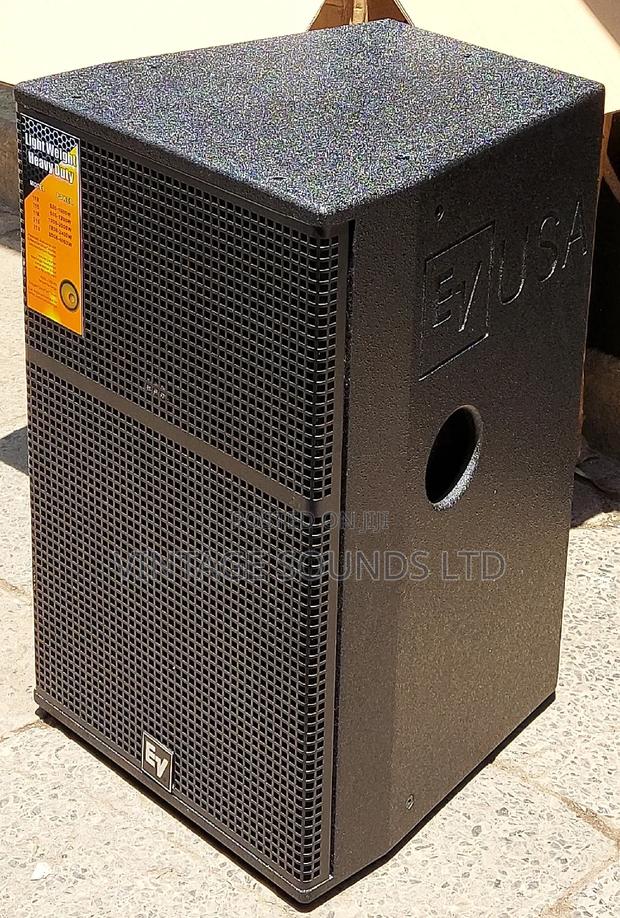

15 Inch Ev Ds115 Midrange Speaker

Axial sensitivity (spl, 1 w @ 1 m) 95 db case material 9-ply, 15mm plywood, internally braced, with textured paint color black speaker type full-range, mid-high, two-way woofer size 381 mm (15") frequency response (-3 db) 75 - 18000 hz frequency response (-10 db) 50 - 20000 hz internal crossover yes recommended high-pass frequency 40 hz max. spl/1m (calc) 134 db half space coverage (nominal -6 db) h 90 ° coverage (nominal -6 db) v 50 ° system power handling (continuous/program/peak) 400//1600/3200 watts lf transducer (1) evs-15k, 381mm (15") woofer hf transducer dh-1k, 39mm (1.5") titanium diaphragm compression driver crossover frequency 17000 hz nominal impedance (passive) 8 ω minimum impedance 7.4 ω connector type parallel neutrik nl4 grill 18ga steel with black powdercoat height 708 mm (27.87")
