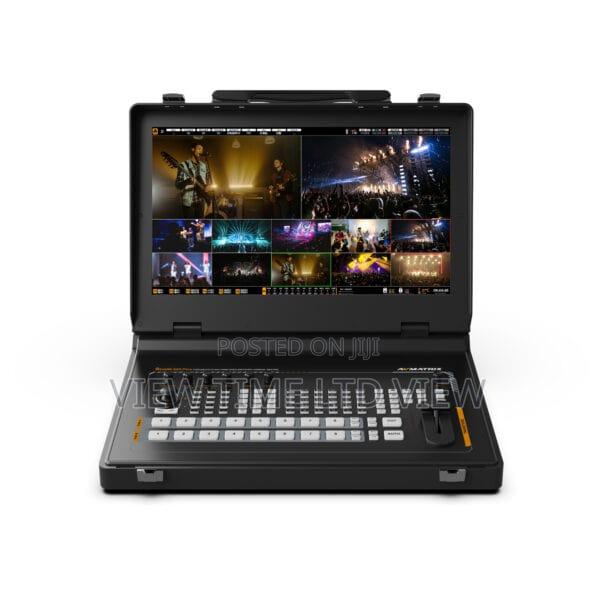

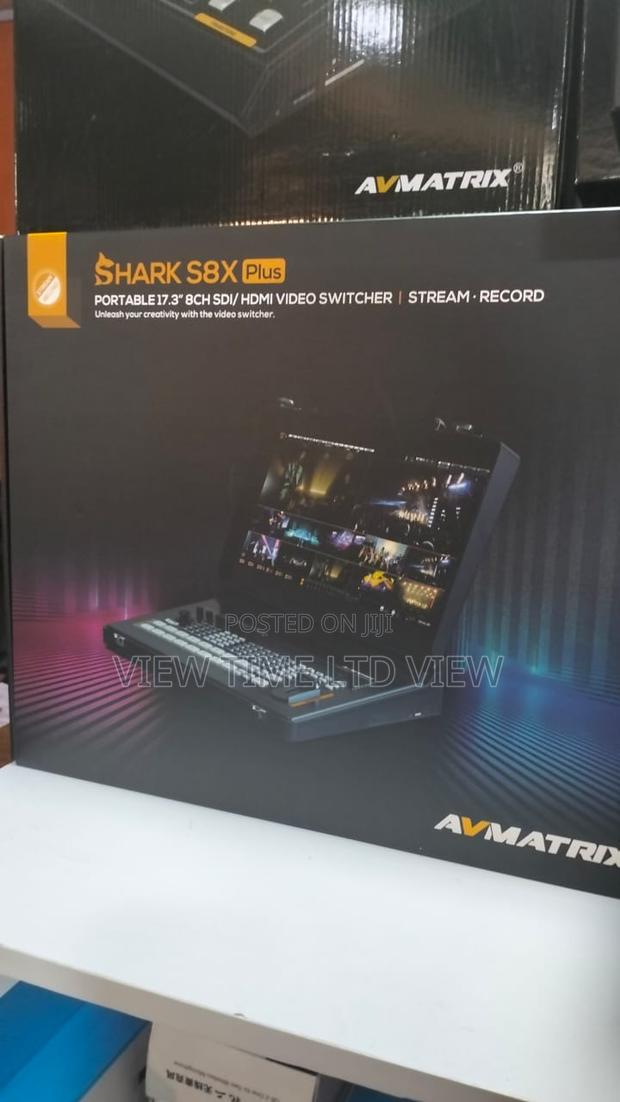

Shark S8x Plus-8ch Sdi/ Hdmi Video Switcher

17.3-inch fhd ips display inputs: 6×3g-sdi and 2×sdi/4k hdmi, 1×bnc ref, 1×aux (internal interface) multi-view source routing function, supporting the definition of any input signal to any specified view aux input: video playback/uvc cam/network pull stream/ndi outputs: 2×hdmi(a/b) pgm (configurable), 4×sdi(a/b) pgm (configurable), 1×hdmi mv (source configurable), 1×ref output streaming: rtmp(s)/srt/rtsp/ndi(optional) recording and playback: usb flash drive/sd card/2.5-inch sata usbc port for uvc lossless capture chroma key, luma key, custom position and size pip×3, pop, dsk, logo overlay transition: t-bar/auto/cut professional xlr audio input and output, supporting 48v phantom power audio : 8×input video embedded audio & 2×xlr/trs balanced & 3.5mm stereo input; 3.5mm stereo & xlr balanced output
