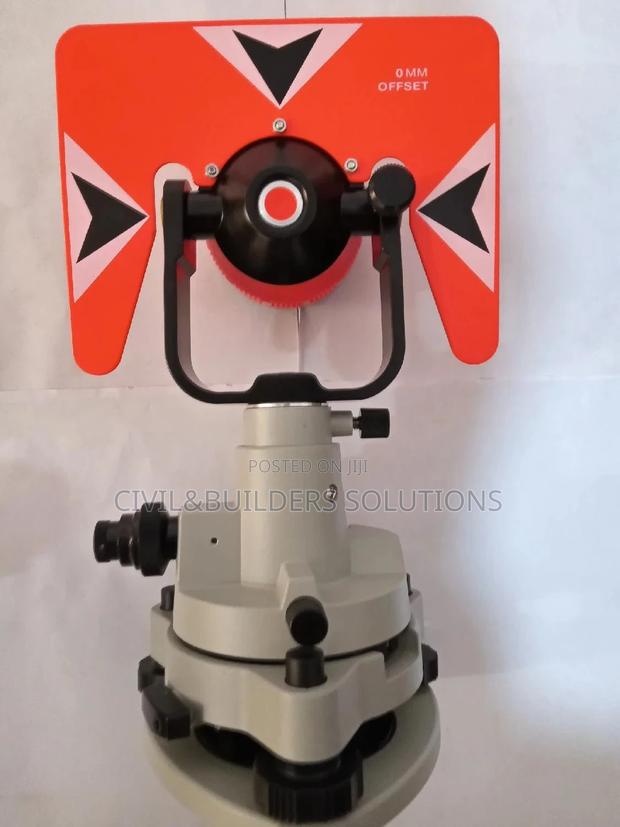

Prism Assembly Topcon

Prism assembly is the process of putting together your prism system for use with total stations. It ensures you get stable, accurate reflections for distance and alignment checks. Components to Assemble: Prism Pole – Height-adjustable for flexible setup Prism Holder – Holds the prism securely in position Prism – Reflects the signal back to your instrument Target Plate – Improves visibility for long-distance sighting (if included) Assembly Steps: Extend the prism pole to your required height Secure the prism holder to the top of the pole Attach the prism to the holder firmly Fix the target plate if provided Make sure everything is tight and stable Once assembled, your prism is ready for use in surveying, construction layout, and boundary marking.
