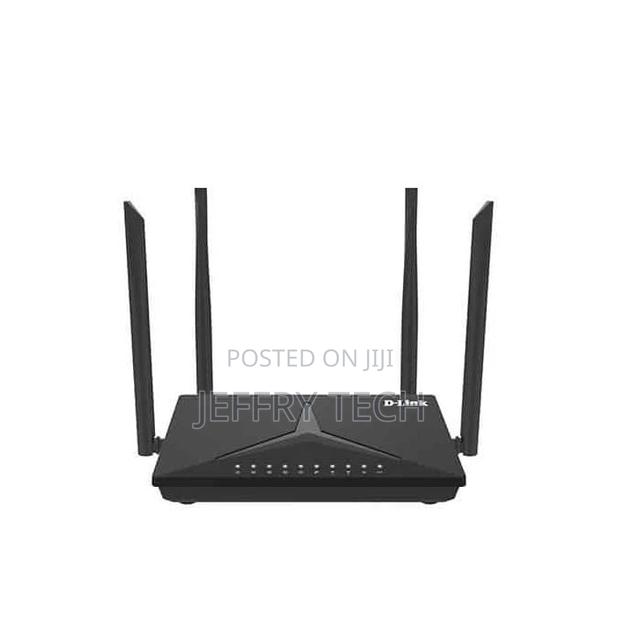

DWR-M921 LTE Router - 32 Devices

Hardware parameters cpu frequency 800mhz memory 64mb 16-bit ddr2 sdram flash 8mb wi-fi 2t2r 2.4ghz 802.11b/g/n, 300mbps device interfaces 1 x lte interface 4 x rj45 10m/100m lan ethernet interfaces 1 x rj45 10m/100m wan ethernet interfaces 1 x reset button 1 x wps button 1 x power jack 1 x power switch 1 x usb 2.0 2ff sim card: standard 6 pin sim card interface wi-fi antenna 2 x 5dbi external antenna lte antenna 2 x 5dbi external antenna lte support bands dwr-m921 wcdma: b1/5/8 fdd lte: b1/b3/b5/b7/b8/b20 gsm: 850/900/1800/1900 tdd lte: b38 /b40/b41 notes: other bands which are not listed in this file, users can confirm with us on email wi-fi features standards 802.11b/g/n 2.4 ~ 2.4835ghz korea, japan, etsi, fcc channels can be selected modulation schemes ofdm = bpsk, qpsk, 16-qam, 64-qam dsss = dbpsk, dqpsk, cck transfer rate ht20: up to 144 mbps ht40: up to 300 mbps software features general rfc0768 udp rfc0791 ip rfc0792 icmp rfc0793 tcp rfc0826 ethernet arp rfc0894
